Porting 68 302 4V heads.

Hear is some befor and after photos of my 68 302 heads.

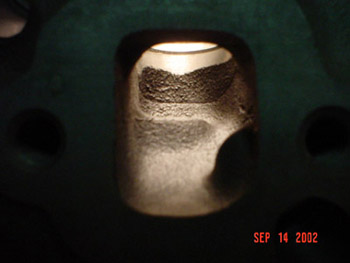

Stock exhaust runner.
Notice the thermatic bump (smog bump) and the shape of the valve guide boss.

Ported exhaust runner.

In this photo notice that the left side wall was enlarged too center the valve guide boss. The thermatic bump was completly removed, and the roof of the port was rased. This port was gasket matched to a standard FEL-PRO gasket, which was perfect for my hooker super comp's.
Stock Intake runner.

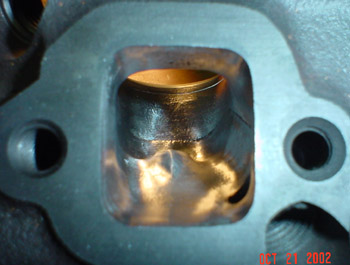

Ported Intake runner.

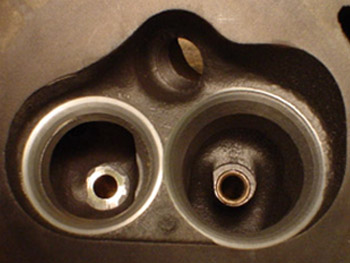

Stock chamber with over sized valves.

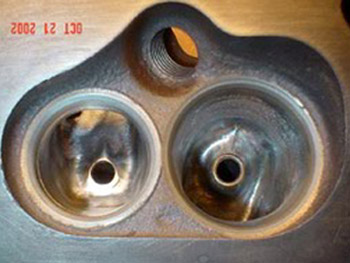

Ported combustion chamber.

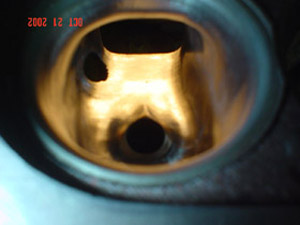

Ported exhaust runner.
